USB to UART Debugger Module for Raspberry Pi 5, Type-A Port Onboard UART Connector, Pi5 UART Debugging for Mac Linux Android Windows 7/8/8.1/10/11, High Baud Rate Transmission

Descripción

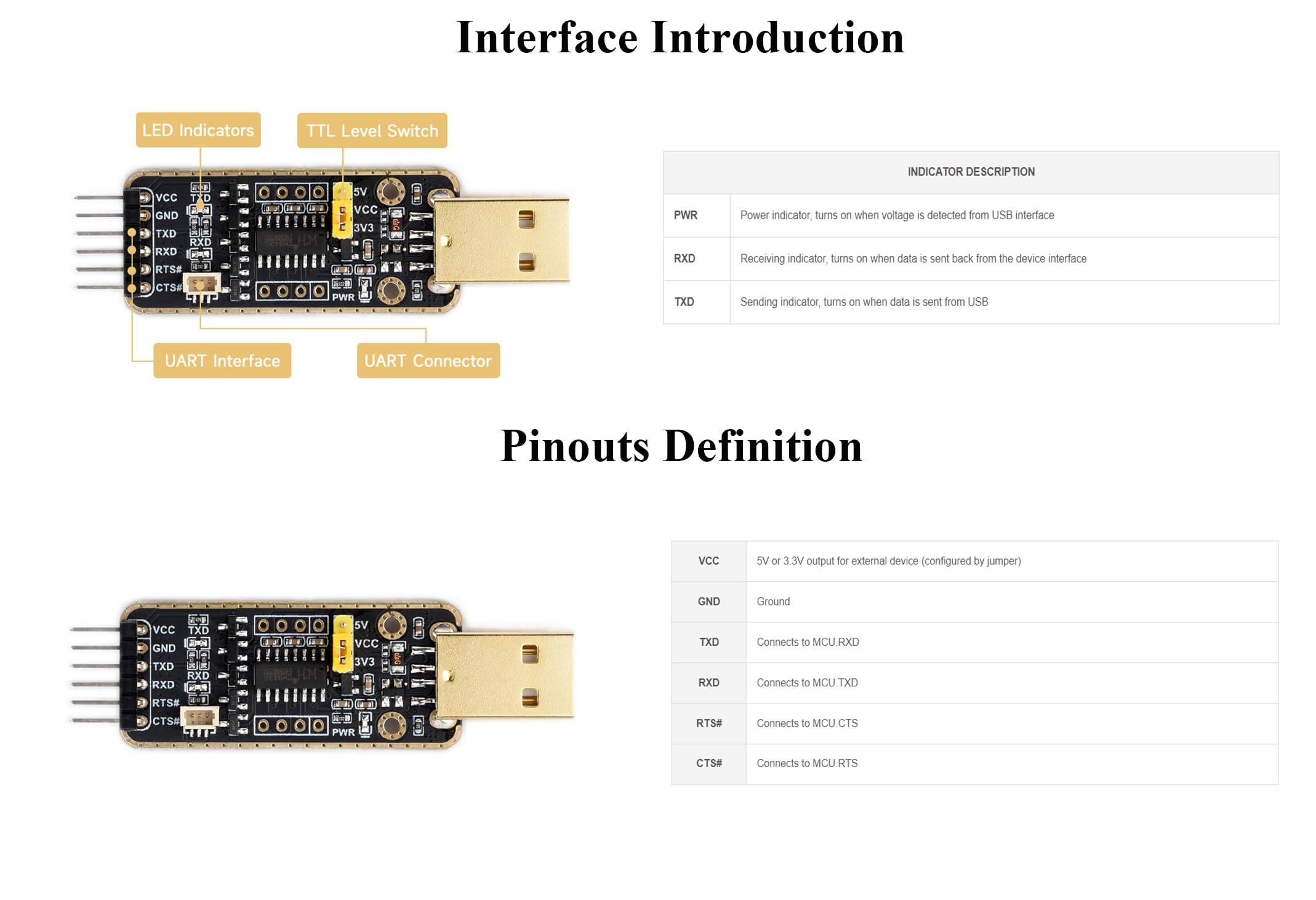

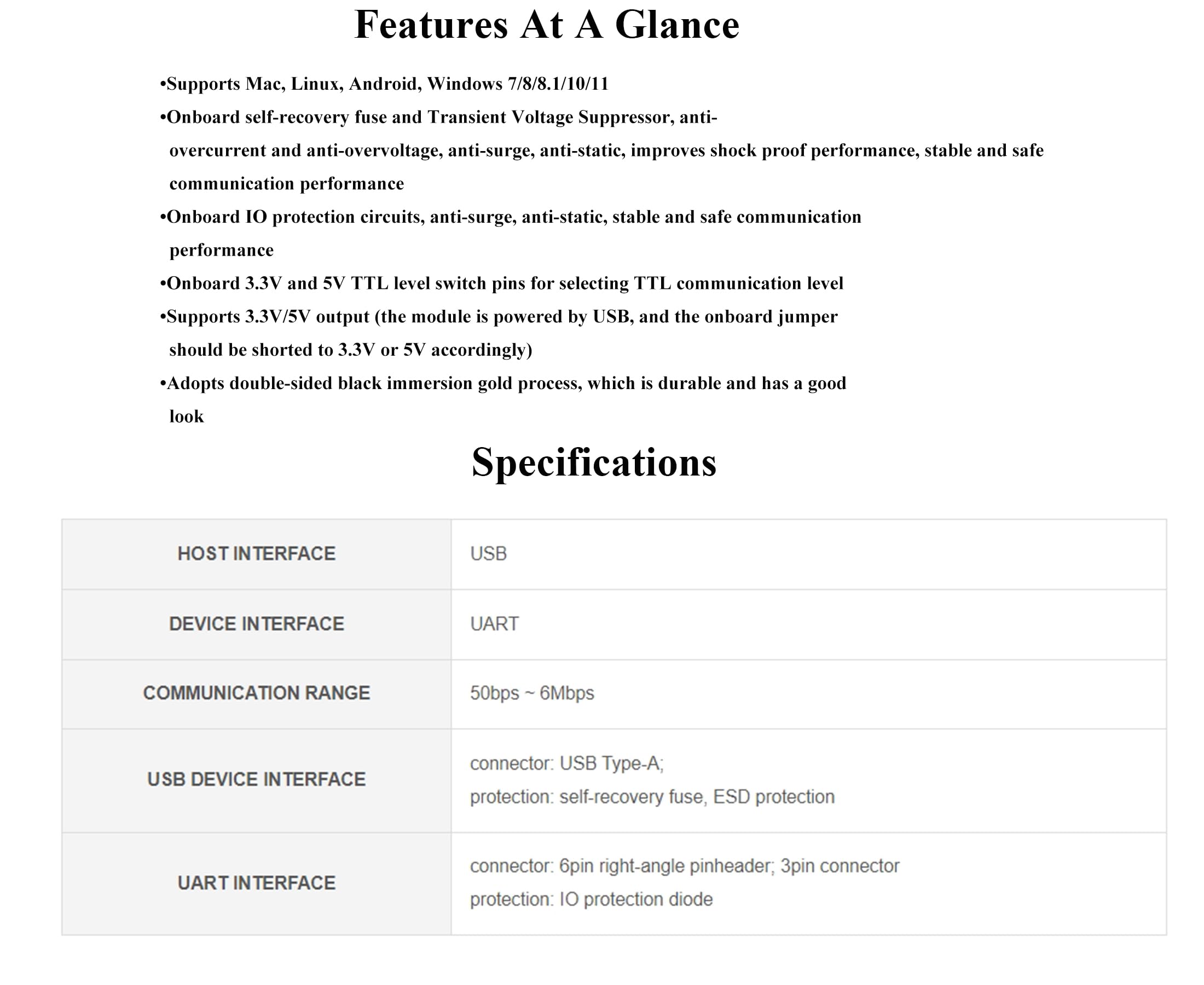

Overview USB To UART Debugger Module for Raspberry Pi 5 , s suitable for Raspberry Pi 5 communication debugging, Type-A Port, Onboard UART Connector, High Baud Rate Transmission. Supports multiple wiring methods, and is compatible with various systems, With features of anti-surge, ESD protection, and immersion gold design. Features Supports Mac, Linux, Android, Windows 7/8/8.1/10/11 Onboard self-recovery fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improves shock proof performance, stable and safe communication performance Onboard IO protection circuits, anti-surge, anti-static, stable and safe communication performance Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level Supports 3.3V/5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly) Adopts double-sided black immersion gold process, which is durable and has a good look Provide Online Development Resources /User Manual: bit.ly/3IYW7ar Pi5 UART debugging suitable for Pi 5, Supports Multiple Connection Methods: 1. Connect to PI5 UART Debug Connector via SH1.0 3PIN cable. 2. Connect onboard 6PIN header to PI5 GPIO UART Interface via 6PIN cable. 3. Connect onboard 6PIN header to PI5 UART Debug Connector via SH1.0 to 3PIN cable. Specifications HOST INTERFACE: USB DEVICE INTERFACE: UART COMMUNICATION RANGE: 50bps ~ 6Mbps Power Supply: 5V USB DEVICE INTERFACE connector: USB Type-A; protection: self-recovery fuse, ESD protection UART INTERFACE connector: 6pin right-angle pinheader; 3pin connector protection: IO protection diode Package Content Pi UART Debugger x1 6-pin squid cable x1 SH1.0 connector to 3PIN cable ~100mm x1 Dual SH1.0 connector 3PIN cable ~100mm x1
